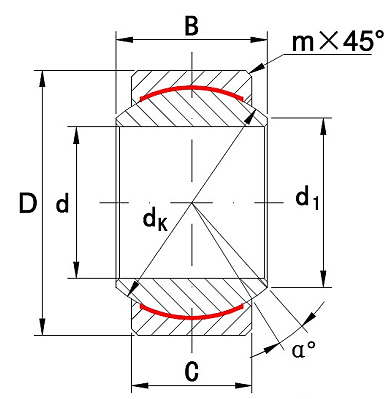

Model |
Size mm |
Load KN |
Weight kg |
|||||||
|
|
d |
d1 |
B |
C |
D |
dk |
m |
α |
动 |
|
|
|
|
|
|
|
|
|
|
≈ |
C |
|
|
CO M3T |
4.826 |
7.44 |
7.14 |
5.54 |
14.29 |
10.31 |
0.381 |
11 |
21.68 |
0.006 |
|
COM4T |
6.350 |
9.25 |
8.71 |
6.35 |
16.67 |
12.70 |
0.560 |
13.5 |
33.02 |
0.010 |
|
COM5T |
7.938 |
10.64 |
9.53 |
7.14 |
19.05 |
14.27 |
0.810 |
12 |
43.20 |
0.014 |
|
COM6T |
9.525 |
13.11 |
10.31 |
7.92 |
20.64 |
16.66 |
0.810 |
10 |
56.04 |
0.017 |
|
COM7T |
11.113 |
13.46 |
11.10 |
8.71 |
23.02 |
17.45 |
0.810 |
8.0 |
63.07 |
0.021 |
|
COM8T |
12.700 |
16.26 |
12.70 |
9.91 |
25.40 |
20.65 |
0.810 |
9.5 |
88.39 |
0.029 |
|
COM9T |
14.288 |
18.03 |
14.27 |
11.10 |
27.78 |
23.01 |
0.810 |
9.5 |
110.94 |
0.039 |
|
COM10T |
15.875 |
19.81 |
15.88 |
12.70 |
30.16 |
25.40 |
0.810 |
8.5 |
141.96 |
0.050 |
|
COM12T |
19.050 |
23.37 |
19.05 |
15.06 |
36.51 |
30.15 |
1.120 |
9.0 |
212.94 |
0.093 |
|
COM14T |
22.225 |
24.89 |
22.23 |
17.86 |
39.69 |
33.32 |
1.120 |
9.5 |
279.93 |
0.119 |
|
COM16T |
25.400 |
28.40 |
25.40 |
20.24 |
44.45 |
38.10 |
1.120 |
10 |
368.25 |
0.175 |
|
HCOM16T |
25.400 |
34.54 |
25.40 |
19.84 |
50.80 |
42.85 |
0.810 |
9.0 |
472.46 |
0.251 |
|
HCOM19T |
30.163 |
40.89 |
30.15 |
23.80 |
60.33 |
50.80 |
0.810 |
8.5 |
672.00 |
0.406 |
|
HCOM20T |
31.750 |
40.89 |
30.15 |
23.80 |
60.33 |
50.80 |
0.810 |
8.5 |
672.00 |
0.406 |
