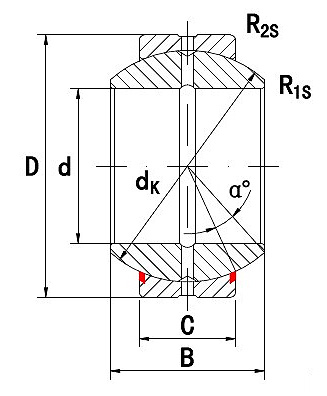

Model |
Size mm |
Load KN |
Weight kg |
||||||||
|
|
d |
D |
B |
C |
dk |
R1s |
R2s |
α |
movement |
whisht |
|
|
|
|
|
|
|
|
min |
min |
≈ |
C |
C0 |
|
|
GEG6E |
6 |
16 |
9 |
5 |
13 |
0.3 |
0.3 |
21 |
5.50 |
27.5 |
0.008 |
|
GEG8E |
8 |
19 |
11 |
6 |
16 |
0.3 |
0.3 |
21 |
8.15 |
40.5 |
0.014 |
|
GEG10E |
10 |
22 |
12 |
7 |
18 |
0.3 |
0.3 |
18 |
10.8 |
54.0 |
0.020 |
|
GEG12E |
12 |
26 |
15 |
9 |
22 |
0.3 |
0.3 |
18 |
17.0 |
85.0 |
0.034 |
|
GEG15ES GEG15ES2RS |
15 |
30 |
16 |
10 |
25 |
0.3 |
0.3 |
16 |
21.2 |
106 |
0.046 |
|
GEG17ES GEG17ES2RS |
17 |
35 |
20 |
12 |
29 |
0.3 |
0.3 |
19 |
30.0 |
146 |
0.077 |
|
GEG20ES GEG20ES2RS |
20 |
42 |
25 |
16 |
35.5 |
0.6 |
0.6 |
17 |
48.0 |
240 |
0.150 |
|
GEG25ES GEG20ES2RS |
25 |
47 |
28 |
18 |
40.7 |
0.6 |
0.6 |
17 |
62.0 |
310 |
0.190 |
|
GEG30ES GEG30ES2RS |
30 |
55 |
32 |
20 |
47 |
0.6 |
1.0 |
17 |
80.0 |
400 |
0.290 |
|
GEG35ES GEG35ES2RS |
35 |
62 |
35 |
22 |
53 |
0.6 |
1.0 |
16 |
100 |
500 |
0.38 |
|
GEG40ES GEG40ES2RS |
40 |
68 |
40 |
25 |
60 |
0.6 |
1.0 |
17 |
127 |
640 |
0.54 |
|
GEG45ES GEG45ES2RS |
45 |
75 |
43 |
28 |
66 |
0.6 |
1.0 |
15 |
156 |
780 |
0.680 |
